光頻譜分析儀
OSA 光譜儀

Optical Spectrum Analyzer

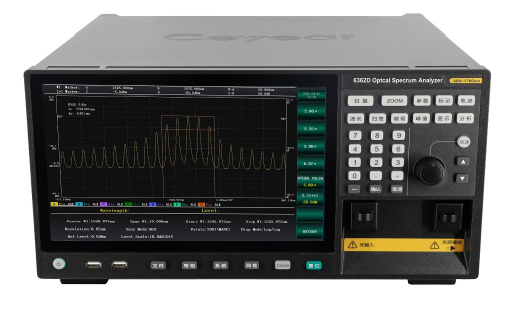

6362 Series
Optical Spectrum Analyzer
6362C/D/E
(350nm-1200nm, 600 nm-1700 nm, 1200nm-2500nm)

Product Overview

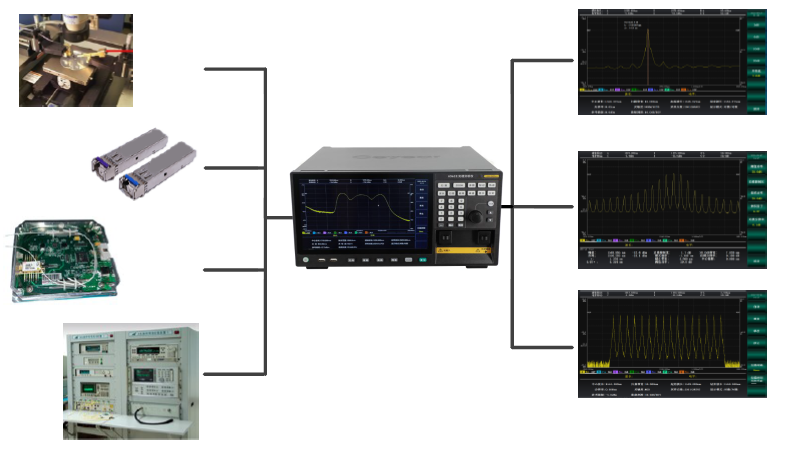

6362 series Optical Spectrum Analyzer is a high-resolution, large-dynamic, high-speed, high-performance optical spectrum analyzer. The wavelength cover from 300nm to 2500nm. They are perfect for testing optical systems, such as DWDM and optical amplifiers; It can also be used for optical active and passive device testing, such as LED, FP-LD, DFB-LD, optical transceivers and optical fibers and fiber gratings and other optical passive devices. It can be widely used in the R&D, production in communication, biomedicine, material, health care areas.

———————————————————————————————————————————————————————————————

Main Features

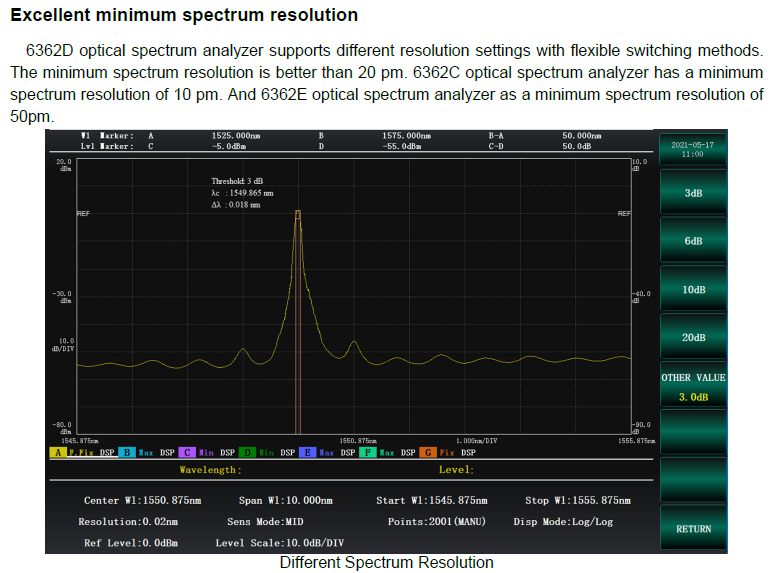

⚫Excellent minimum spectrum resolution
⚫350 nm to 2500 nm spectrum scanning range
⚫Very large dynamic range
⚫Small sensoring sensitivity
⚫Support spatial light input
⚫Built-in light source output configuration

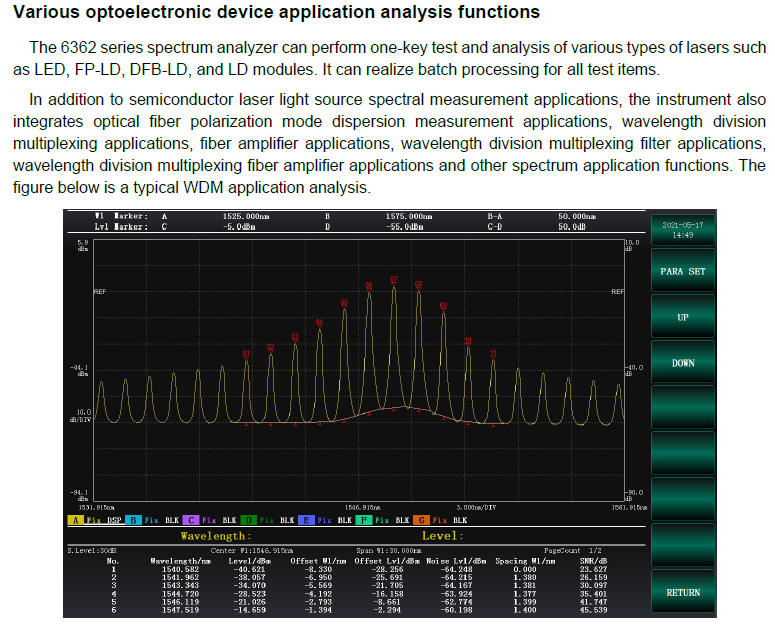

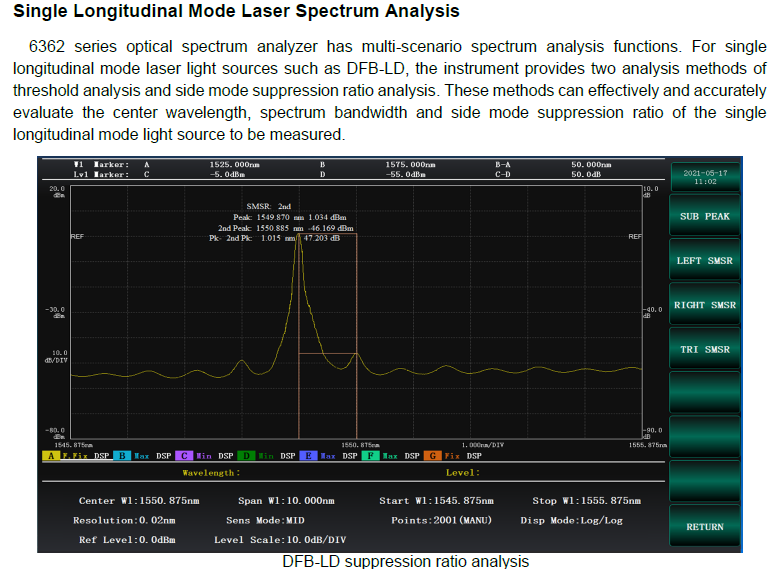

⚫Powerful spectrum data analysis function for multiple applications
⚫12.1-inch touch screen
