Zequn TDR Probe Datasheet

Differential

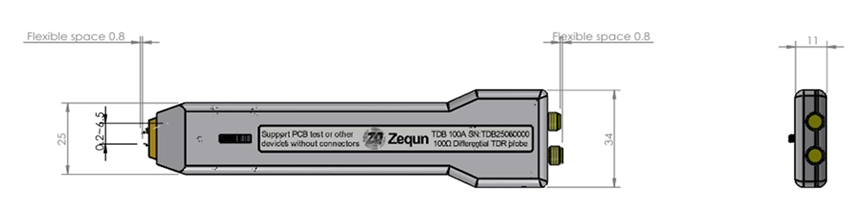

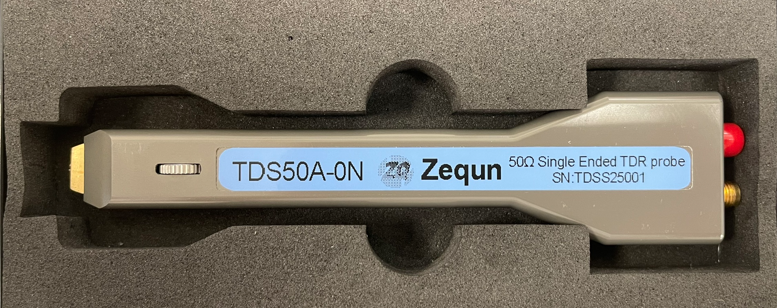

Single-Ended

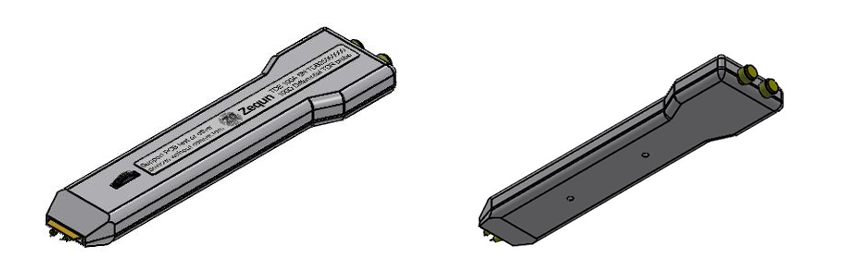

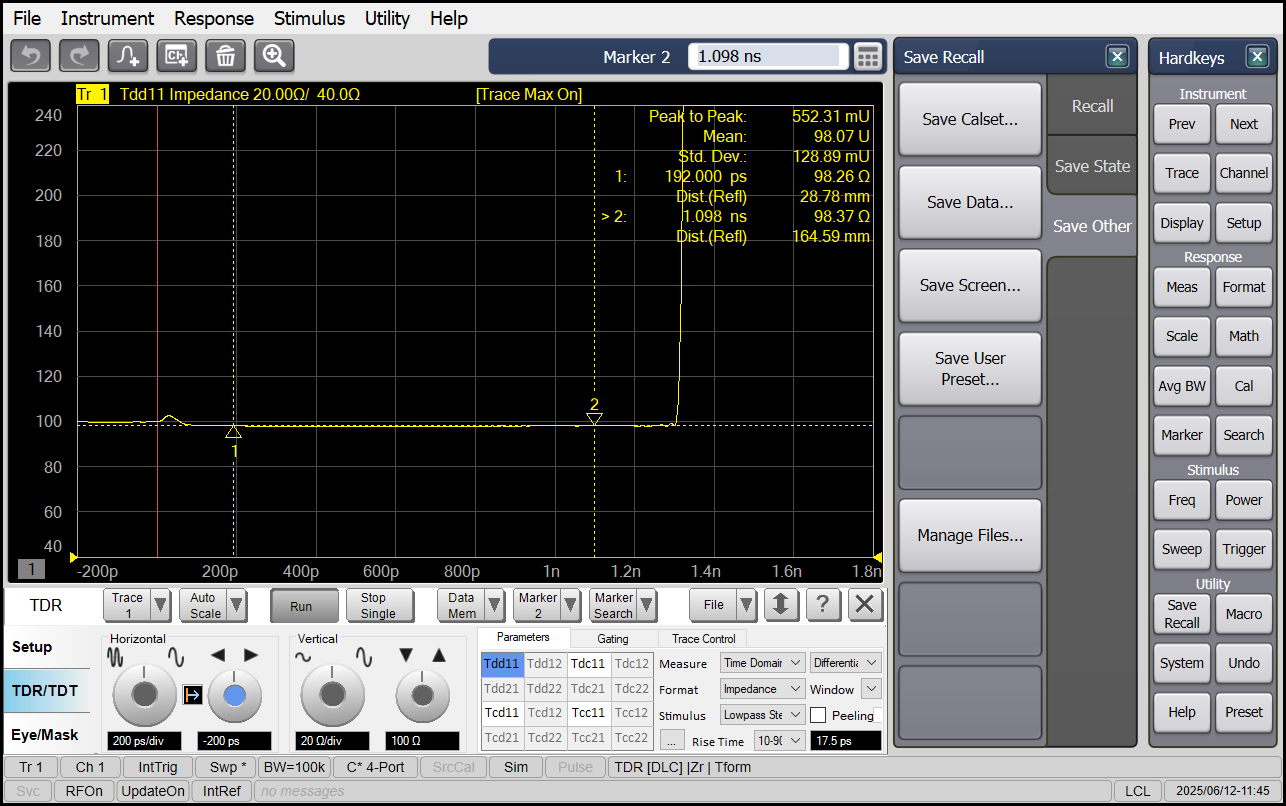

Zequn TDR Probes enables high-fidelity impedance measurements of Single-Ended or Differential
transmission lines. The adjustable probe pitch covers a wide variety of line spacing and
impedances. Meanwhile, a flexible spring design strengthens the contact between probe tips and
DUT and extends the usage of lifetime.

Features and benefits：

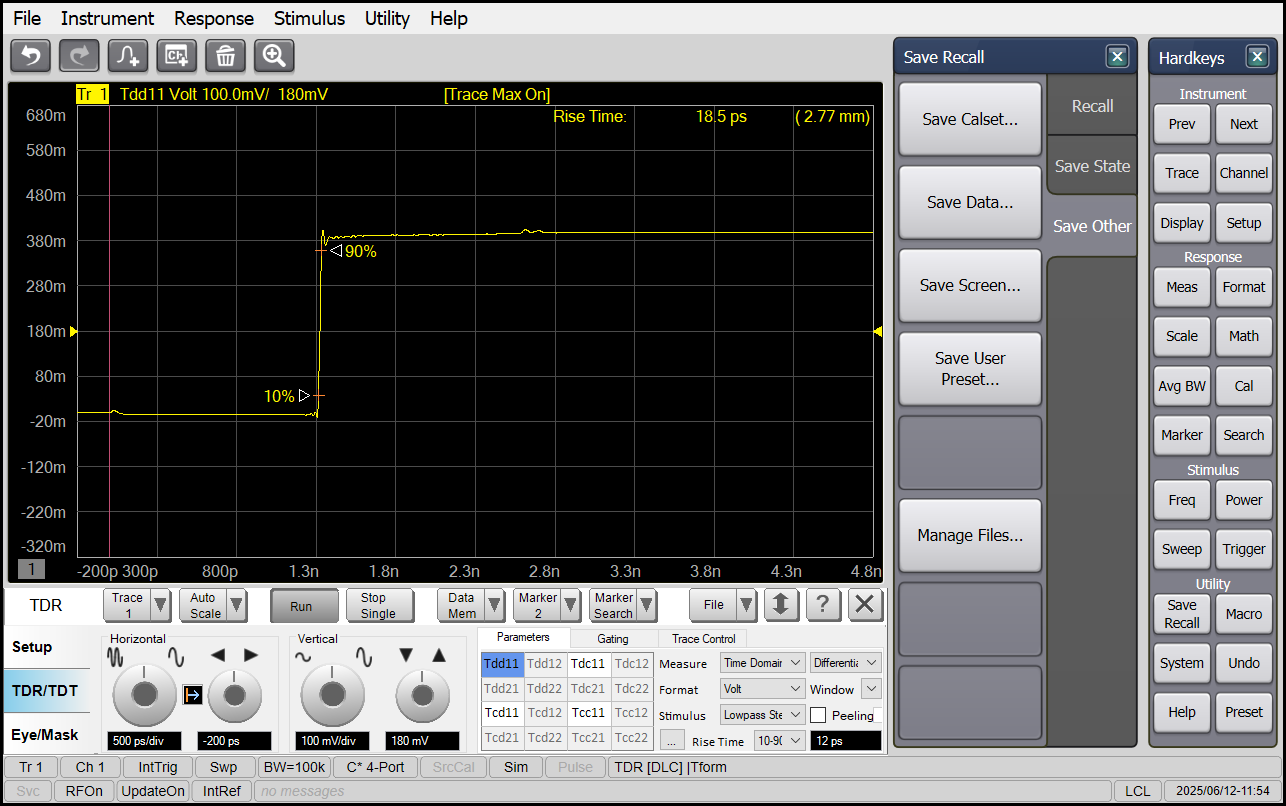

• 30 GHz bandwidth.
• Direct In-circuit TDR Testing.
• Wide Range Adjustable Probe Pitch.
• Probing of Fully Balanced Differential Signals.
• Easy to Handle and to attach on the Fixture.
