- One tray can test up to 64
- Simultaneous testing of LIV and wavelength-related parameters (Yokogawa AQ6370D recommended)
- With test product focal length function (Focal Length)
- LIV tester current range 0~200mA
- Support various pin positions
- With software screening and classification function
- The average test speed is about 60s/pcs, including LIV, SMSR and Focal Length tests
- With height adjustment function, the height can be adjusted according to different products
- Dimensions (W600*L650*H700 mm)
- One year warranty

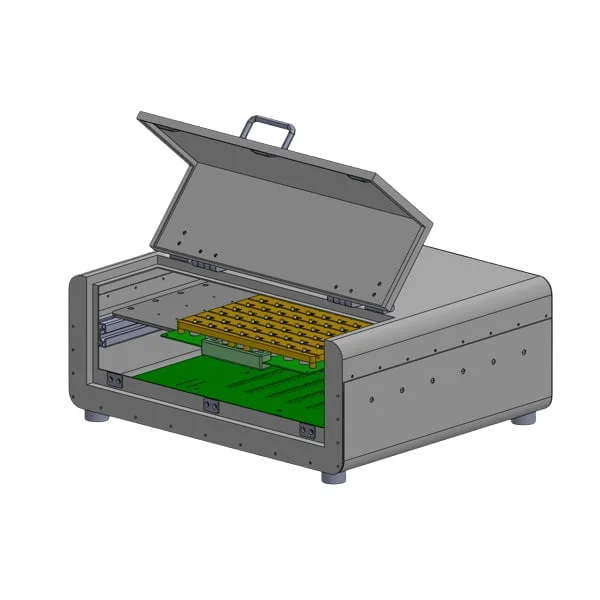

LD TO-CAN Auto Sorting Machine
Description
- Equipped with LIV testing machine (including PD and its related cables)
- Equipped with multi-channel switching module to cooperate with LIV tester
- Equipped with fiber dual function, combined with OSA (recommended Yokogawa AQ6370D) control,
- Can perform wavelength (SMSR) and other related measurements
- Equipped with height sensing, using single-mode fiber, with the function of testing product focal length
